Made especially for servo and stepper motor drives:

The Amazon™ Intelligent Power Center (“IPC”)

The Amazon IPC is designed for the unique power requirements of servo and stepper motor drives:

Regenerated energy is losslessly stored or safely dissipated, eliminating over-voltage shutdowns and external regeneration controls. See More ▾

The IPC handles the high peak power demands required during acceleration and deceleration, with minimal voltage droop or overcurrent shutdowns. See More ▾

IPC output voltages are optimized for typical motor drives, providing the lowest cost way for getting maximum power from a motor system. See More ▾

The Amazon IPC is a complete solution for powering servo motor and stepper motor systems—superior to standard switching-mode power supplies, and smaller, lighter and higher performance than the transformer-based solutions traditionally used for motor power.

Low Voltage (75 VDC) Motor Drive Power Supplies

Compatible with ClearPath NEMA 23 and 34 servos
and Eclipse and Meridian 2xx-5xx series products

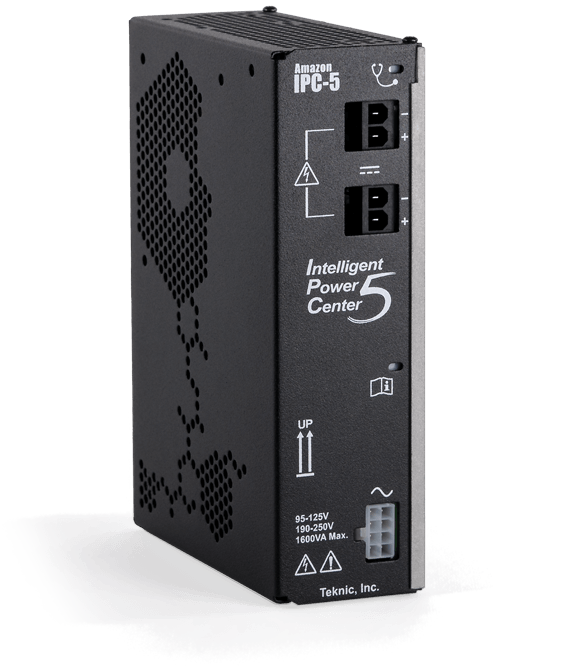

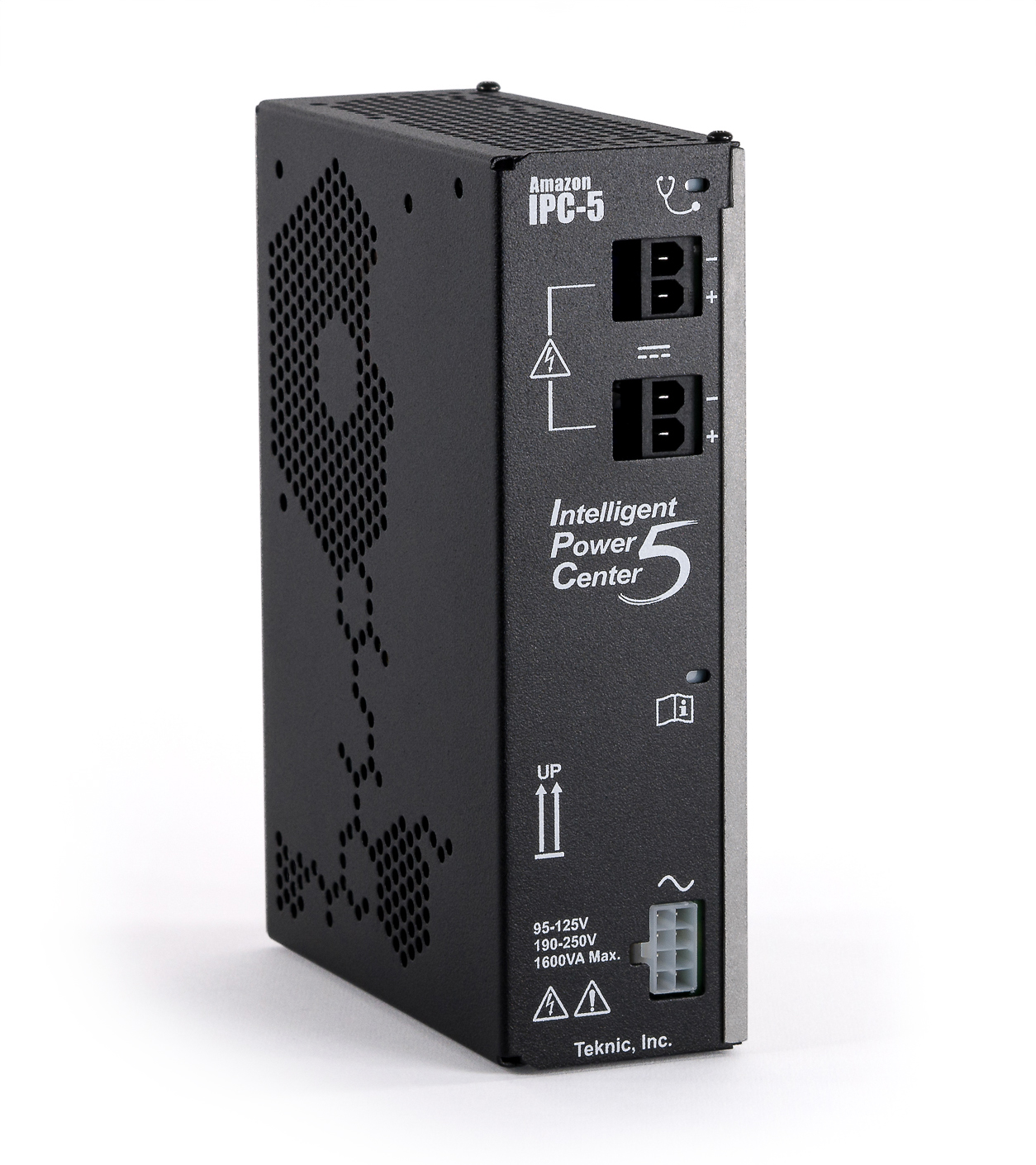

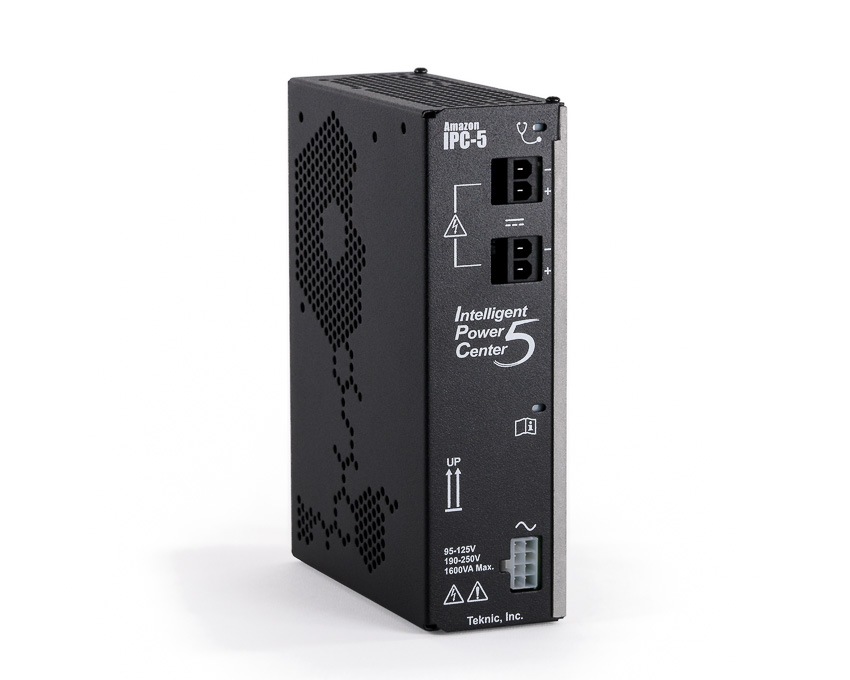

IPC-5 Power Supply

  • 75 VDC output; 350 Watts continuous power (500 Watts with fan cooling)
  • Compact size: 7.20” x 5.20” x 2.26” (mm: 183 x 132 x 57.3)
  • Aluminum, perforated cover fully encloses the supply (UL “finger safe”)
  • 53 joules of capacitive energy storage for lossless storage of regenerated energy and reduced output ripple
  • 20 watt excess regenerated energy absorption
  • Over-voltage and over-current detection and protection (designed to not false trip on the high peak loads of a motion system)
  • Soft-start, in-rush current limiting to prevent accidentally tripping circuit breakers upon machine power up
  • Reverse-polarity protection prevents damage to your motor drive if you accidentally reverse input power polarity
  • Short-circuit protection
  • Built-in EMI filtering
  • Automatic dump of bus power quickly brings output voltage to safe levels after power down
  • Wide AC input range: 95-125/190-250VAC; 50-60Hz
  • UL recognized, CE certified
  • 3 year warranty
IPC 5

3D Drawings 3d model IPC-3/5 User Manual IPC-3/5 User Manual

Part Number Qty 1-9 Qty 10-49 Qty 50-99 Qty 100-199 Quantity
IPC-5 $248 Requires quick registration Bracket
IPC35-CABLE110
110VAC line cord
$14 Requires quick registration

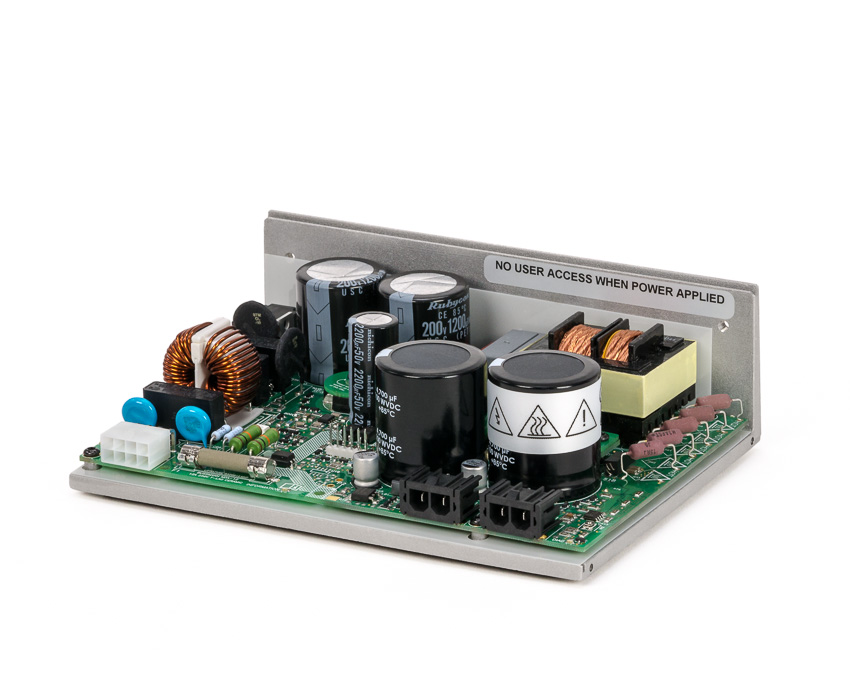

IPC-3 Power Supply

  • 75 VDC output; 225 Watts continuous power
  • Compact size: 7.13” x 5.20” x 2.26” (mm: 183 x 132 x 57.3)
  • Open frame design (to be used within a machine enclosure)
  • 53 joules of capacitive energy storage for lossless storage of regenerated energy and reduced output ripple
  • 13 watt excess regenerated energy absorption
  • Over-voltage and over-current detection and protection (designed to not false trip on the high peak loads of a motion system)
  • Soft-start, in-rush current limiting to prevent accidentally tripping circuit breakers upon machine power up
  • Reverse-polarity protection prevents damage to your motor drive if you accidentally reverse input power polarity
  • Short-circuit protection
  • Built-in EMI filtering
  • Automatic dump of bus power quickly brings output voltage to safe levels after power down
  • Wide AC input range: 95-125/190-250VAC; 50-60Hz
  • UL recognized, CE certified
  • 3 year warranty
IPC 3

3D Drawings 3d model IPC-3/5 User Manual IPC-3/5 User Manual

Part Number Qty 1-9 Qty 10-49 Qty 50-99 Qty 100-199 Quantity
IPC-3 $199 Requires quick registration Bracket
IPC35-CABLE110
110VAC line cord
$14 Requires quick registration

High Voltage (132-400 VDC) Motor Drive Power Supplies

Compatible with Eclipse and Meridian
6xx and 7xx series products

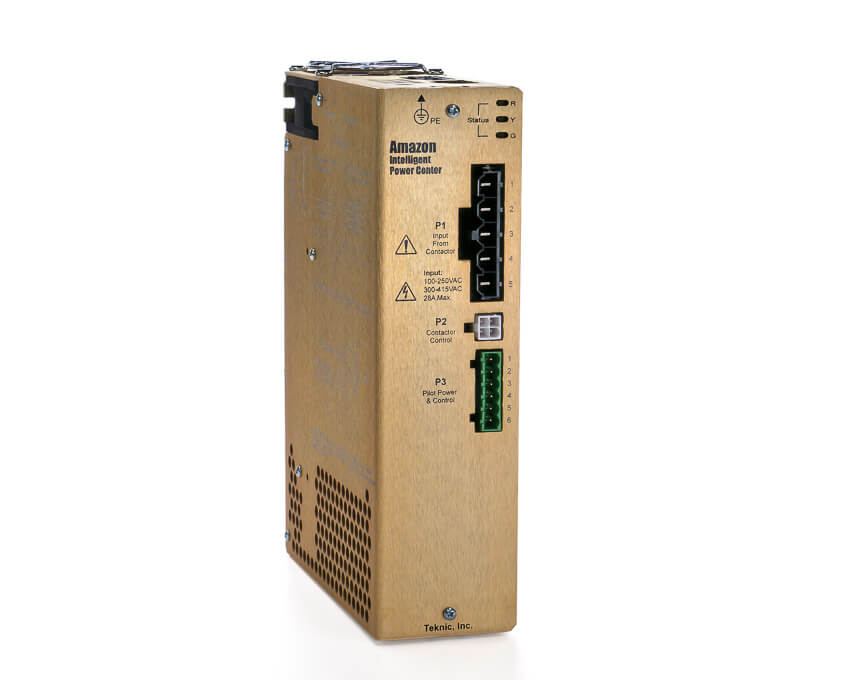

IPC-75/IPC-25 Power Supplies

  • 132-400 VDC output; 6,800/2,800 Watts continuous power at 240VAC
  • Compact size: 8.79” x 6.47” x 2.35” (mm: 223 x 164 x 60)
  • Aluminum, perforated cover fully encloses the supply (UL “finger safe”)
  • 211/127 joules of capacitive energy storage for lossless storage of regenerated energy and reduced output ripple
  • 150/50 watt excess regenerated energy absorption
  • Over-voltage and over-current detection and protection (designed to not false trip on the high peak loads of a motion system)
  • Soft-start, in-rush current limiting to prevent accidentally tripping circuit breakers upon machine power up
  • Reverse-polarity protection prevents damage to your motor drive if you accidentally reverse input power polarity
  • Short-circuit protection
  • Built-in EMI filtering (optional)
  • Automatic dump of bus power quickly brings output voltage to safe levels after power down
  • Wide AC input range: 90-250VAC (single phase or 3-phase); 155 -415 VAC (3-phase five-wire); 50-60Hz
  • Built-in AC input contactor control to easily control power to all drives
  • Brown-out detection
  • AC Voltage droop detection
  • Lost AC input phase detection
  • UL recognized, CE certified
  • 3 year warranty
IPC 75/IPC 25

3D Drawings 3d model IPC-25/75 User Manual IPC-25/75 User Manual

Part Number Qty 1-9 Qty 10-49 Qty 50-99 Qty 100-199
IPC-75-FX $420 Requires quick registration
IPC-25-FX $292 Requires quick registration

Power Supply Compatibility

This table shows the base part numbers for Teknic’s four DC power supplies, and their compatibility with various Teknic servo drives and other Teknic products that contain servo drives (e.g., ClearPath integrated motor-drive-controller products).

Low Voltage (75 VDC) High Voltage (132-400 VDC)
Part Number IPC-5 IPC-3 IPC-75-XX IPC-25-XX
Typical number of drives per supply* 2-6 1-4 2-15 1-8
Compatible Drives CLEARPATH - NEMA 23 & 34 MODELS ECLIPSE SST-E6XX-XXX
ECLIPSE SST-E2XX-XXX ECLIPSE SST-E7XX-XXX
ECLIPSE SST-E3XX-XXX MERIDIAN ISC-M6XX-XXX
ECLIPSE SST-E4XX-XXX MERIDIAN ISC-M7XX-XXX
ECLIPSE SST-E5XX-XXX
MERIDIAN ISC-M2XX-XXX
MERIDIAN ISC-M3XX-XXX
MERIDIAN ISC-M4XX-XXX
MERIDIAN ISC-M5XX-XXX
MERIDIAN ISC-S2XX-XXX
MERIDIAN ISC-S3XX-XXX
*The number of drives that one power supply can support is highly dependent on the application and exact drive models used. Contact Teknic if you need assistance.

Regenerated Energy

Spinning motors act like generators; they produce a voltage whose polarity induces a decelerating or braking current. So in order to accelerate a motor or maintain constant velocity, a motor drive must apply a voltage in excess of this generated voltage so that the net voltage produces the desired current. When the motor drive wants to decelerate the motor, it can let the regenerated energy flow back into the power supply slowing down the motor in the process. Ideally, for efficiency, the regenerated energy will be stored by the power supply to be used again for the next acceleration phase.

Most switching power supplies can not handle this reverse current and will shut down (or operate erratically). A power supply designed for servo and stepper motor drive applications can losslessly store a large amount of regenerated energy.

If the “regen” power climbs to a level beyond what can be stored (e.g., during aggressive deceleration of large inertial loads, lowering of gravitational loads, etc.), the ideal power supply will shunt the excess energy into a load resistor to safely dissipate it. This is not as efficient as storing and reusing the energy, but it’s much better than applying excessive voltage to the drive causing it to shut down or get damaged.

Ample Peak Power Capacity

Motion control applications typically have periods of acceleration, periods of constant velocity, and periods of deceleration. They often also have significant periods of standstill. Acceleration (and to a lesser degree, deceleration) takes significantly more power than running at constant velocity and standing still. But because the accel and decel periods are typically a small fraction of the overall move profile, the average power required of the motor (and hence the power supply) over the entire motion cycle is typically much lower than the peak power. (This is less true in a stepper motor system than a servo system because steppers use a relatively large amount of power even when moving at constant speed or standing still.)

If a power supply can not adequately supply large amounts of peak power, the supply will need to be sized such that its continuous power rating is sufficient to meet the peak motor demands. This leads to a large and expensive power supply. A motor drive power supply is designed to supply large peaks of power without problem, and therefore can be physically smaller and less expensive.

Optimal Voltage Output

There are many electronic components used in machine automation that run on 24 volt power, which is one reason why 24 volt power supplies are readily available from dozens of suppliers. This makes it tempting to use 24 volts to power your DC-powered motor drive. But the economics of the semiconductors (and other electronic components) used in servo motor and stepper motor drives have caused most drive manufacturers to make their low-voltage drives run all the way to 75 volts (or maybe a little higher).

If you run a 75 volt drive from a 24 volt supply, it will typically work, but you are literally throwing away two-thirds of the mechanical power you could easily get from your system. Moving to a larger motor to get more power is much more expensive than simply supplying more voltage. This is why power supplies for low-voltage motor drives are usually in the 60 to 80 volt range. The same thing holds true for higher voltage drives which are typically designed to internally run off of 300 volts DC.
