ClearCore - I/O and Motion Controller

CLCR-4-13

Each ClearCore Industrial I/O and Motion Controller handles up to 4 axes of high-speed step & direction motion, and provides 13 software-configurable I/O points (fully protected and 24 VDC compatible).

An extensive C++ library makes coding easier and more productive. The library includes many example projects compatible with the Atmel Studio 7 development environment. With the optional Atmel-ICE debug tool, you can take advantage of sophisticated debug techniques like single-stepping through code and setting complex breakpoints.

If you prefer a more lightweight development environment, you can download the optional ClearCore Arduino Wrapper Library. This allows you to write code within the easy to use Arduino IDE and using Arduino command syntax. This library includes dozens of Arduino "sketch" examples.

You can use ClearCore standalone to control smaller systems, or distributed by networking multiple units to a master CPU (e.g., Raspberry Pi). Communicate with ClearCore using its Ethernet port, one of its two serial ports or via USB; or communicate wirelessly by connecting a compatible XBee module.

You can expand each ClearCore’s digital I/O by adding up to eight CCIO-8 expansion modules. This provides up to an additional 64 points of configurable digital I/O.

See the ClearCore main product page for more information.

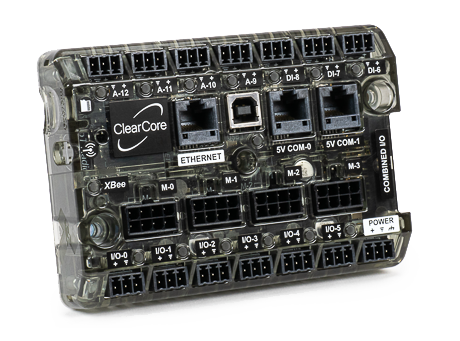

ClearCore motion controller

Purchase

Qty 1-9 10-49 50-99 100-199 200-319 320-999 1000+
$99
$149
$99
$124
$99
$110
$99 $96 $94 CONTACT
Want to lock in this discount?

Downloads

Drawings
ClearCore-and-Accessories.pdf 2D Drawings
CLCR_CCIO_24VDC.zip 3D Drawings
Manuals
clearcore_user_manual.pdf ClearCore User Manual
clearcore_system_diagram.pdf Quick Reference Wiring Information
Software
ClearCore_Atmel_Installer.zip I/O Motion Library Installer
ClearCore_Arduino_Wrapper_Installer.zip Arduino Wrapper Installer

Specifications

Mechanical
Dimensions 5.0" x 3.5" x 1.0" (127mm x 88.9mm x 25.4mm)
Weight (with cover) 0-95%; non-condensing
Material 3mm thick Polycarbonate cover, aluminum mount frame
Electrical
Voltage Input 12-28 VDC
Output Current Capability I/O 0,1,2,3 - 375 mA RMS, (750mA peak)
I/O 4,5 - 500 mA RMS, (1,000mA peak)
Indicator LEDs for each input Yes
IP rating IP20
Operating Temperature/Humidity -20C to 50C, 0-90% non-condensing
Storage Temperature -40C to 85C
Power Consumption 300mA@24V or 500mA@12V
Adding an XBee will add as much as an additional 100mA@24V or200mA@12V
Protection features Overcurrent protection on all outputs
Inductive clamping on all outputs
Board master overvoltage and overcurrent protection

ESD protection features on all I/O circuits
Processing/Communication
Total I/O 13 built-in I/O points, software configurable as any combination of up to 13 digital inputs, 4 analog inputs, 6 digital outputs, 2 HBridge/speaker outputs and 1 analog output (4-20mA or 0-20mA). See table on next page for I/O configuration.

Another 64 digital I/O can be added by using optional 8-point I/O expansion modules (p/n CCIO-8).

All configuration of I/O hardware is controlled by software, i.e., no jumpers, DIP switches, trim-pots, etc. need to be manually set.
Serial communication 2 Multi-functional, individually configurable serial ports that can be used as a UART, SPI, or RS-232 at up to 115.2kBaud.

Rates up to 2MBaud are achievable depending on cable length, slave transceiver circuit and grounding.

5V power pins are available on each port.
Ethernet 10Base-T/100Base-TX Ethernet
USB USB 2.0
Wireless connectivity Accepts XBee modules for wireless connectivity (Wi-Fi, Bluetooth, Mesh, etc.)
Programming Language C++
Memory Capability 512 KB Flash
192 KB RAM
Storage expansion via onboard SD card drive
Supported development environment Windows 10, Windows 7* (see note)
Processor type and speed 32 bit floating point ARM M4F processor
120 MHz
(p/n SAME53N19A)
Max Step Rate 500kHz

* Win 7 note: USB driver management in Windows 7 causes issues in some installations which affect the uploading of code to ClearCore. Extra manual steps may be required to upload code in these systems.

ClearCore System Components and Accessories

ClearCore schematic ClearCore CCIO-8 Terminal Block Plugs 24VDC Power Supply Cat5e cable Atmel-ICE debugger Atmel-ICE debugger 6-pin cable USB cable DIN rail mounting kit Link to ClearPath-SD Link to ClearPath-MC
Terminal Block Plugs, 3-position (pack of 10)

Terminal Block Plugs, 3-position (pack of 10)
Part Number: CC-3TERM-PLUG-10PC

Package of 10 terminal block plugs for ClearCore (and CCIO-8 Expansion) I/O. (ClearCore and CCIO-8 units do not ship with the plugs.)
Qty 1-9 Qty 10-49 Qty 50-99 Qty 100-199 Qty 200+
$9 REQUIRES QUICK REGISTRATION CONTACT

Quantities up to 5 will ship within 3 business days. Quantities greater than 5 will ship within three weeks.

24 VDC Power Supply

24 VDC Power Supply
Part Number: PWR-IO-24VDC
Output Voltage: 24 VDC
Output Current: 6.5 Amps
Input Voltage: 85-264 VAC, auto-selected
Dimensions:159x97x30mm (6.26x3.82x1.18 in.)

156 watt DC power supply capable of powering a ClearCore with a full complement of I/O devices, with extra power to spare for expansion I/O.

Protection: Short circuit / Overload / Over-voltage / Over-temperature. Compliance with UL62368-1, EN61558-1/2-16. Operating temperature -25 to 50 deg. C with no derating.
Qty 1-9 Qty 10-49 Qty 50-99 Qty 100-199 Qty 200+
$39 REQUIRES QUICK REGISTRATION CONTACT

Quantities up to 5 will ship within 3 business days. Quantities greater than 5 will ship within three weeks.

Digital I/O Expansion, 8-point

Digital I/O Expansion, 8-point
Part Number: CCIO-8

Digital I/O expansion module for ClearCore. Eight 24 VDC I/O points - all software-configurable as digital inputs or outputs. Up to 8 CCIO-8 modules can be daisy-chained to one ClearCore (uses one serial com port on ClearCore). Aluminum mounting plate accepts DIN rail mounting kit (p/n DIN-MNT).

Each CCIO-8 requires a Cat5 Ethernet patch cable (e.g., p/n CABLE-CAT-120).

Terminal block plugs are not included; order p/n ClearCore-3TERM-PLUG-10PC (10-pack).
Qty 1-9 Qty 10-49 Qty 50-99 Qty 100-199 Qty 200+
$49 REQUIRES QUICK REGISTRATION CONTACT

Quantities up to 5 will ship within 3 business days. Quantities greater than 5 will ship within three weeks.

Cat5e Patch Cable

Cat5e Patch Cable
Part Number: CABLE-CAT5-120
Connectors: RJ45
Length: 3.05 meters (10 ft)

Cat5e cable used to connect CCIO-8 expansion I/O modules to ClearCore. Flexible, snag-free, cable boot protects the plug while making it easy to depress the locking clip. 24AWG stranded, pure bare copper conductors. 50μm gold-plated contacts.

One cable required per CCIO-8.
Qty 1-9 Qty 10-49 Qty 50-99 Qty 100-199 Qty 200+
$9 REQUIRES QUICK REGISTRATION CONTACT

Quantities up to 5 will ship within 3 business days. Quantities greater than 5 will ship within three weeks.

Terminal Block Plugs, 3-position (p/n: CC-3TERM-PLUG-10PC)

terminal block plugs

Terminal Block Plugs, 3-position (pack of 10)
Part Number: CC-3TERM-PLUG-10PC

Package of 10 terminal block plugs for ClearCore (and CCIO-8 Expansion) I/O. (ClearCore and CCIO-8 units do not ship with the plugs.)
Qty 1-9 Qty 10-49 Qty 50-99 Qty 100-199 Qty 200+
$9 REQUIRES QUICK REGISTRATION CONTACT

Quantities up to 5 will ship within 3 business days. Quantities greater than 5 will ship within three weeks.

24 VDC Power Supply (p/n: PWR-IO-24VDC)

24VDC Power Supply

24 VDC Power Supply
Part Number: PWR-IO-24VDC
Output Voltage: 24 VDC
Output Current: 6.5 Amps
Input Voltage: 85-264 VAC, auto-selected
Dimensions: 159x97x30mm (6.26x3.82x1.18 in.)

156 watt DC power supply capable of powering a ClearCore with a full complement of I/O devices, with extra power to spare for expansion I/O.

Protection: Short circuit / Overload / Over-voltage / Over-temperature. Compliance with UL62368-1, EN61558-1/2-16. Operating temperature -25 to 50 deg. C with no derating.
Qty 1-9 Qty 10-49 Qty 50-99 Qty 100-199 Qty 200+
$39 REQUIRES QUICK REGISTRATION CONTACT

Quantities up to 5 will ship within 3 business days. Quantities greater than 5 will ship within three weeks.

Digital I/O Expansion, 8-point (p/n: CCIO-8)

CCIO-8

Digital I/O Expansion, 8-point
Part Number: CCIO-8

Digital I/O expansion module for ClearCore. Eight 24 VDC I/O points - all software-configurable as digital inputs or outputs. Up to 8 CCIO-8 modules can be daisy-chained to one ClearCore (uses one serial com port on ClearCore). Aluminum mounting plate accepts DIN rail mounting kit (p/n DIN-MNT).

Each CCIO-8 requires a Cat5 Ethernet patch cable (e.g., p/n CABLE-CAT-120).

Terminal block plugs are not included; order p/n ClearCore-3TERM-PLUG-10PC (10-pack).
Qty 1-9 Qty 10-49 Qty 50-99 Qty 100-199 Qty 200+
$49 REQUIRES QUICK REGISTRATION CONTACT

Quantities up to 5 will ship within 3 business days. Quantities greater than 5 will ship within three weeks.

Cat5e Patch Cable (p/n: CABLE-CAT5-120)

Cat5e cable

Cat5e Patch Cable
Part Number: CABLE-CAT5-120
Connectors: RJ45
Length: 3.05 meters (10 ft)

Cat5e cable used to connect CCIO-8 expansion I/O modules to ClearCore. Flexible, snag-free, cable boot protects the plug while making it easy to depress the locking clip. 24AWG stranded, pure bare copper conductors. 50μm gold-plated contacts.

One cable required per CCIO-8.
Qty 1-9 Qty 10-49 Qty 50-99 Qty 100-199 Qty 200+
$9 REQUIRES QUICK REGISTRATION CONTACT

Quantities up to 5 will ship within 3 business days. Quantities greater than 5 will ship within three weeks.

Atmel-ICE Debugger, Cable (p/n: ATATMEL-ICE-BASIC, TC2030-CTX-LEMTA)

Atmel-ICE cable

Atmel-ICE Debugger
Part Number: ATATMEL-ICE-BASIC


Cable, Atmel-ICE to ClearCore
Part Number: TC2030-CTX-LEMTA

Atmel-ICE development tool for debugging software on ARM Cortex-M devices such as ClearCore. Requires cable p/n TC2030-CTX-LEMTA for use with ClearCore. Powered via USB (USB Cable included). ClearCore cover must be removed to access debug connector.

Quantities up to 5 will ship within 3 business days. Quantities greater than 5 will ship within three weeks.

Part Number Price Quantity
ATATMEL-ICE-BASIC $119 Bracket

The "Add to Cart" button will add one of each component (Atmel-ICE and cable) unless you edit the quantities. Type "0" for the quantity of any component you don't want to add to your cart.

TC2030-CTX-LEMTA $54

USB Cable, ClearCore to PC (p/n: CPM-CABLE-USB-120AB)

USB Cable

USB Cable, ClearCore to PC
Part Number: CPM-CABLE-USB-120AB
Connectors: USB 2.0 A to B
Length: 3.05 m (10 ft)

Cable used to connect ClearCore to your computer for downloading user code.
Note: this cable cannot be used with ClearPath-MC or -SD series motors; for those, use CPM-CABLE-USB-120 (which has micro-B connector).
Qty 1-9 Qty 10-49 Qty 50-99 Qty 100-199 Qty 200+
$9 REQUIRES QUICK REGISTRATION CONTACT

Quantities up to 5 will ship within 3 business days. Quantities greater than 5 will ship within three weeks.

DIN Rail Mounting Kit (p/n: DIN-MNT)

DIN Rail Mounting Kit

DIN Rail Mounting Kit
Part Number: DIN-MNT

*Available Mid-August

DIN rail mounting kit for ClearCore, or CCIO-8 expansion modules. Designed to allow for any orientation of the device on the rail. Heavy-duty, spring-loaded clip allows easy installation and removal while providing secure attachment.
Qty 1-9 Qty 10-49 Qty 50-99 Qty 100-199 Qty 200+
$19 REQUIRES QUICK REGISTRATION CONTACT

Quantities up to 5 will ship within 3 business days. Quantities greater than 5 will ship within three weeks.
