High-performance machine control components for OEMS

Servo motors, controllers, power supplies, drives, and more. Built in the US and sold factory-direct.

Learn More Play Demo

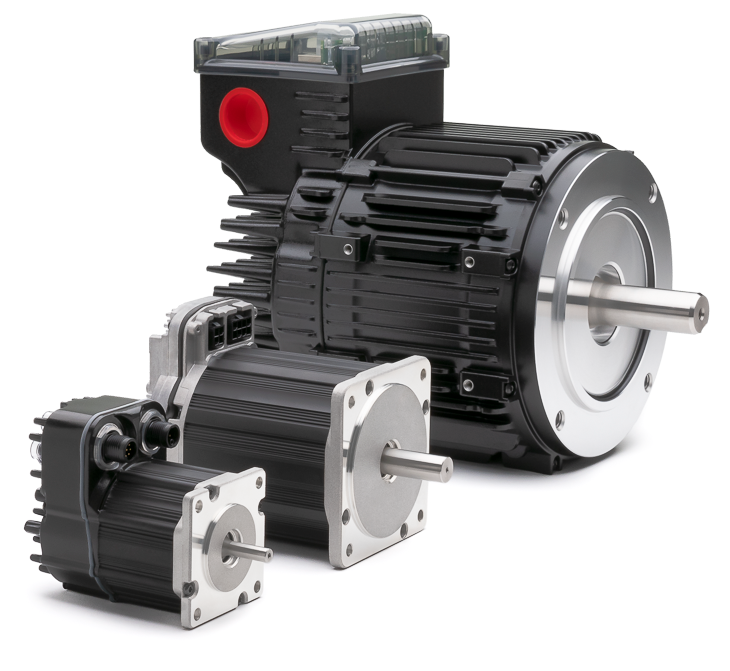

Teknic integrated motors, servo drives, and power supplies

Engineers review
Teknic products

Average Rating: 4.98 Stars

See 170+ Reviews

Michael E.

We are an OEM and have used Teknic motors and drives for many years, and a great deal of Clearpath motors since they became available. Our ability to create mechanics with a minimum of additional controls has been key, and using Clearpath MCPV and MCVC has made most simple automation actually simple, unlike some "smart" motors. The quality and forethought in the feature set is amazing. There is literally no reason to use steppers in anything, now that we have Clearpath SDSK. We routinely pair Teknic Clearpath with our most mission critical devices.

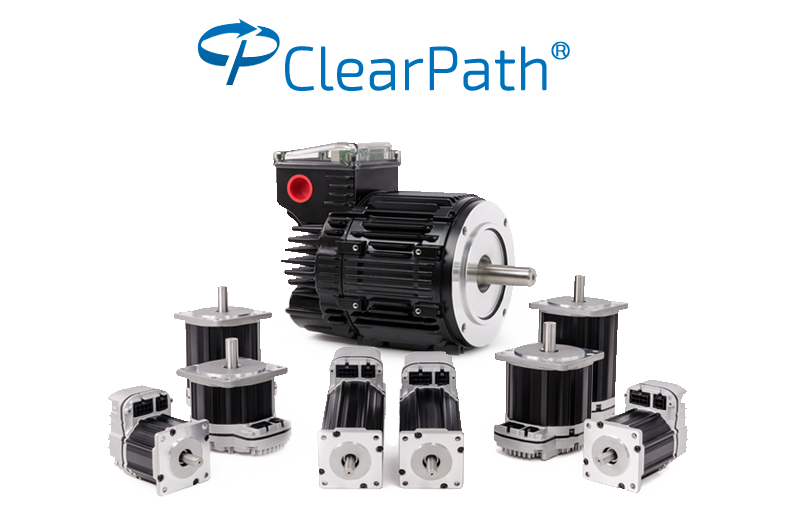

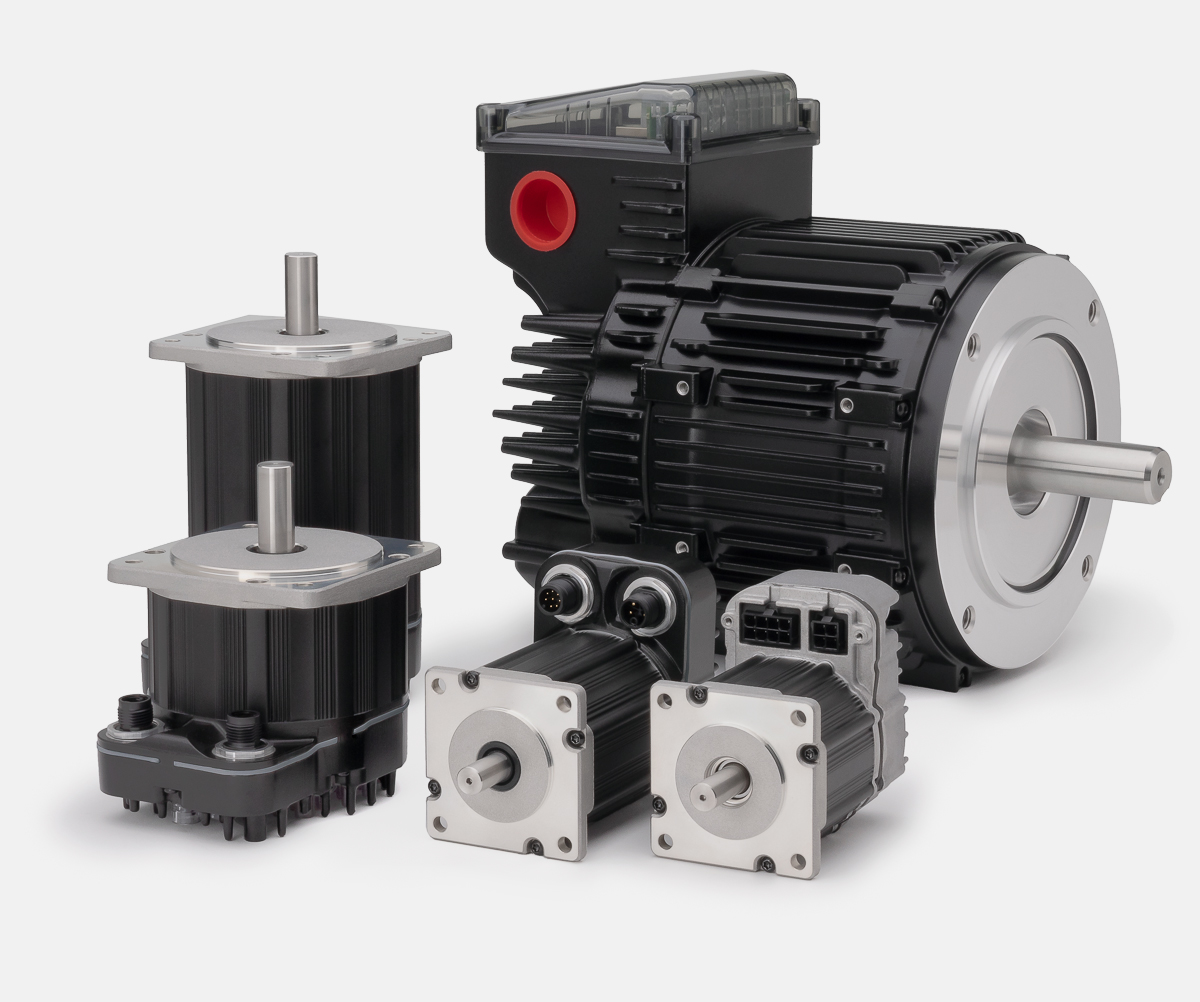

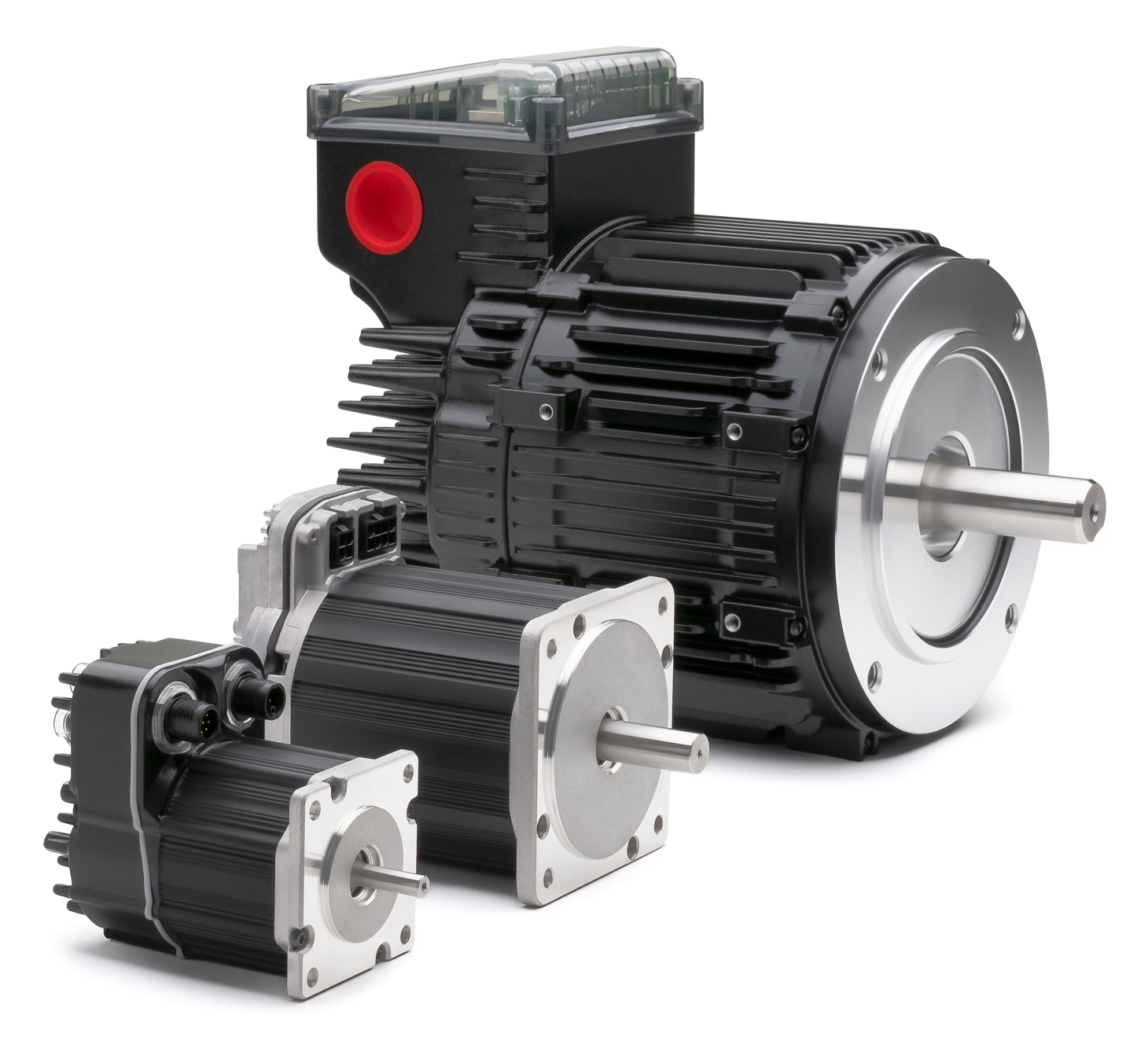

ClearPath

All-In-One Servo Systems

ClearPath is a brushless servo motor, encoder, and high-performance servo drive all rolled into one compact package. ClearPath offers state-of-the-art servo performance that's easy even for new users. Integrated electronics mean no drive to wire and mount. Auto-tuning optimizes performance for your exact system. All at a price less than most non-integrated servos.

Power Range	Large variety of models ranging from 38W to 4hp continuous; 100W to 7.74hp peak power
Frame Sizes	NEMA 23/34/56/143; IEC D100
Voltage Inputs	Find detailed torque/speed curves for 24-75 VDC or 100-240 VAC inputs
Environments	IP53 & IP67/66K models available

Starting Price (qty. 1-9) $260	3-year warranty	Ships in 3 days
Starting Price (qty. 1-9) $260	90-day returns	Buy online

Learn More Play Demo

Affordable upgrades for your existing motors

Replace stepper motors and drives with ClearPath-SD

ClearPath-SD series servo systems are a perfect drop-in replacement for your stepper motor and drive systems. Get increased machine throughput (8-13x more power than similar size steppers), whisper-quiet motion, and no more lost steps.

ClearPath-SD

Replace AC induction motors and variable frequency drives

If you use AC induction motors with variable frequency drives, ClearPath servos can give you better velocity regulation, full position control, and easy programmability—all at a comparable price, and in a completely integrated package.

ClearPath-MC

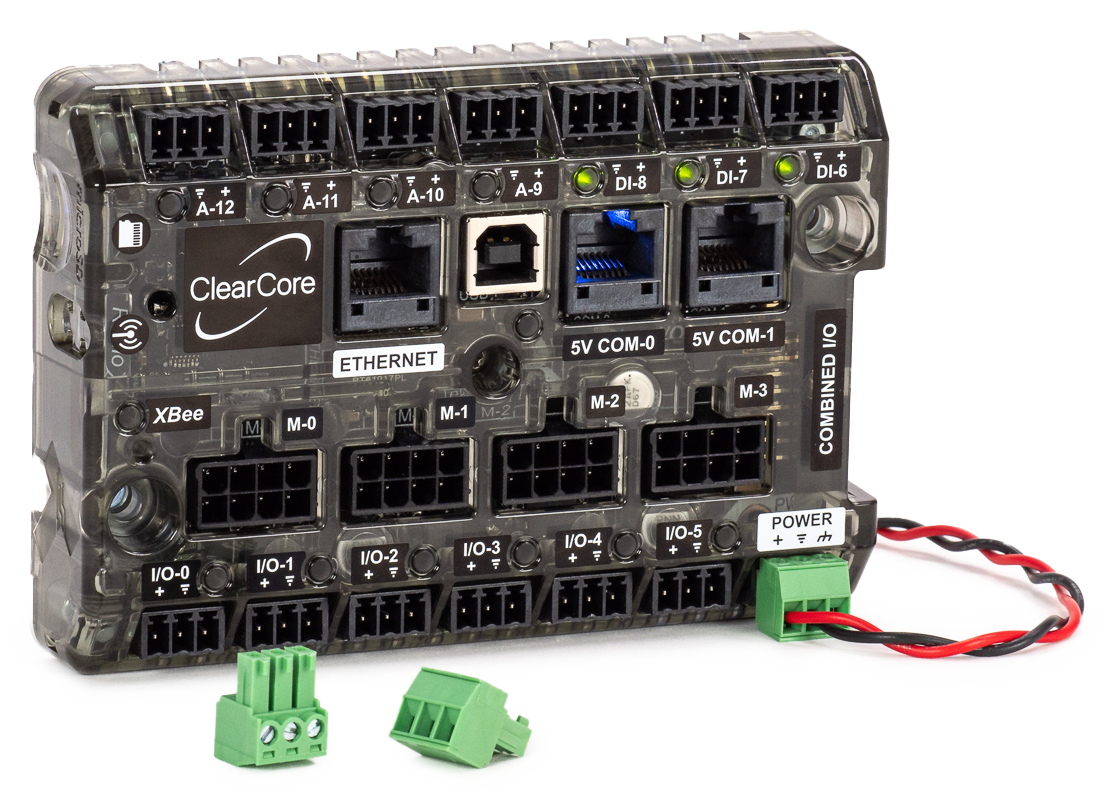

ClearCore

I/O and Motion Controller

ClearCore is an industrial C++ programmable I/O and motion controller with four motion axes, analog and digital I/O, serial ports, and XBee wireless comms for Industrial IoT. Expand ClearCore for large, multi-axis systems.

Exandable I/O	13 configurable I/O points. Add up to 64 additional I/O points with CCIO-8 expansion modules
Motion Control	Connect up to 4 axes of step-and-direction servo or stepper motor drives
Heavy-Duty	Industrial grade outputs to drive contactors, valves, brakes, etc.
Protection	Protect against various overload conditions, ESD, inductive flyback, reversed power polarity, and more

Price (qty. 1-9) $105	3-year warranty	Ships in 3 days
Price (qty. 1-9) $105	90-day returns	Buy online

Learn More Play Demo

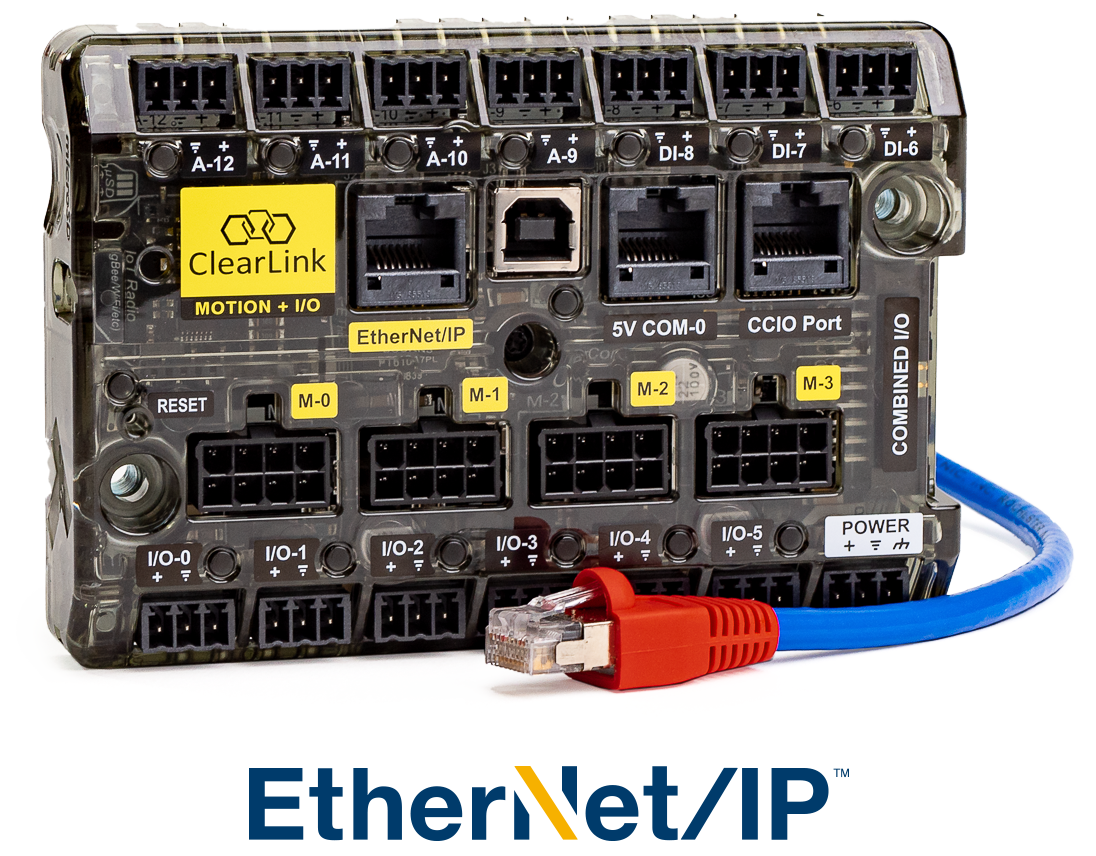

ClearLink

EtherNet/IP Controller

ClearLink is an industrial I/O and motion controller, compatible with any EtherNet/IP scanner. Use ClearLink to control position, velocity, and torque applications.

Exandable I/O	13 configurable I/O points. Add up to 64 additional I/O points with CCIO-8 expansion modules
Motion Control	Connect up to 4 axes of step-and-direction servo or stepper motor drives
Heavy-Duty	Industrial grade outputs to drive contactors, valves, brakes, etc.
Protection	Protect against various overload conditions, ESD, inductive flyback, reversed power polarity, and more

Price (qty. 1-9) $251	3-year warranty	Ships in 3 days
Price (qty. 1-9) $251	90-day returns	Buy online

Learn More

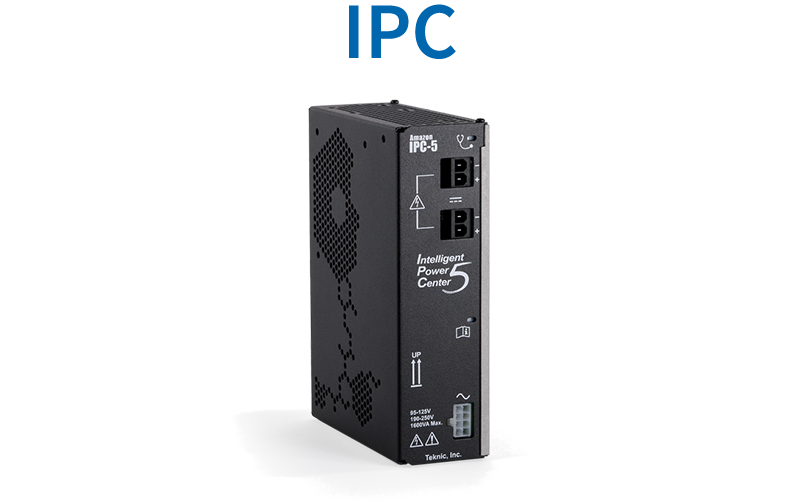

IPC

Amazon IPC

Intelligent Power Centers

The Amazon IPC is a complete solution for powering servo motor and stepper motor systems—superior to standard switching-mode power supplies, and smaller, lighter and higher performance than the transformer-based solutions traditionally used for motor power.

Peak Power	Handles high peak power demands during motion acceleration
DC Output	Optimized output voltages provide the lowest-cost method for max power from a motion system
Protection	Over-voltage, over-current, and reverse-polarity protection prevents damage to your systems
Safety	Automatic dump of bus power brings output voltage to safe levels quickly after power down

Starting Price (qty. 1-9) $202	3-year warranty	Ships in 3 days
Starting Price (qty. 1-9) $202	90-day returns	Buy online

Learn More

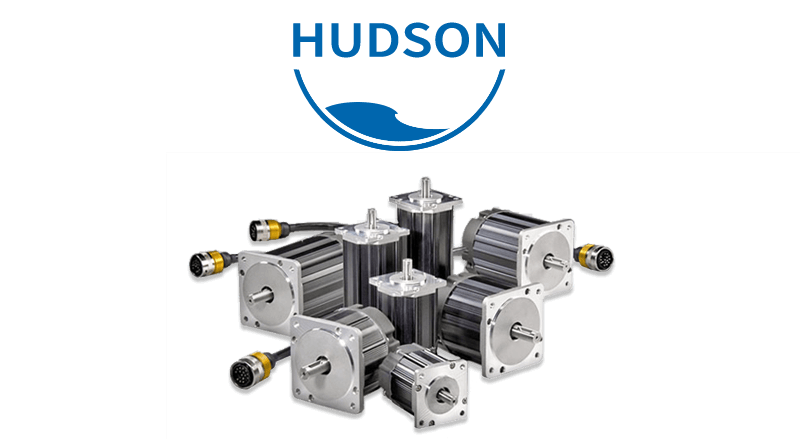

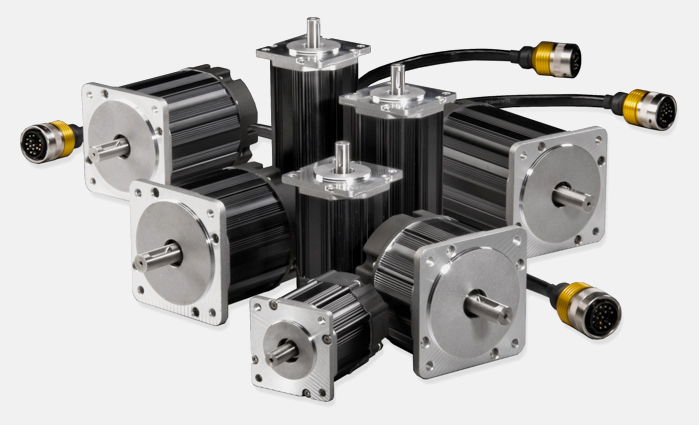

Hudson

BLDC Servo Motors

Hudson brushless DC servo motors provide high torque and a fast electrical time constant. Make moves with rapid settling time, precise velocity regulation, and excellent dynamic accuracy.

Smooth / Quiet	Harmonically-pure back-EMF and custom-balanced rotors provide ultra-smooth and quiet motion
Reliability	Oversized bearing, high-temp windings, fault-tolerant encoders, and much more ensures long-lasting operation
Environments	IP50, IP67/66K options
Connectors	Three connector options available: Molex Mini-Fit Jr., M12 (on-body), and Souriau Trim Trio

Starting Price (qty. 1-9) $214	3-year warranty	Ships in 3 days
Starting Price (qty. 1-9) $214	90-day returns	Buy online

Learn More

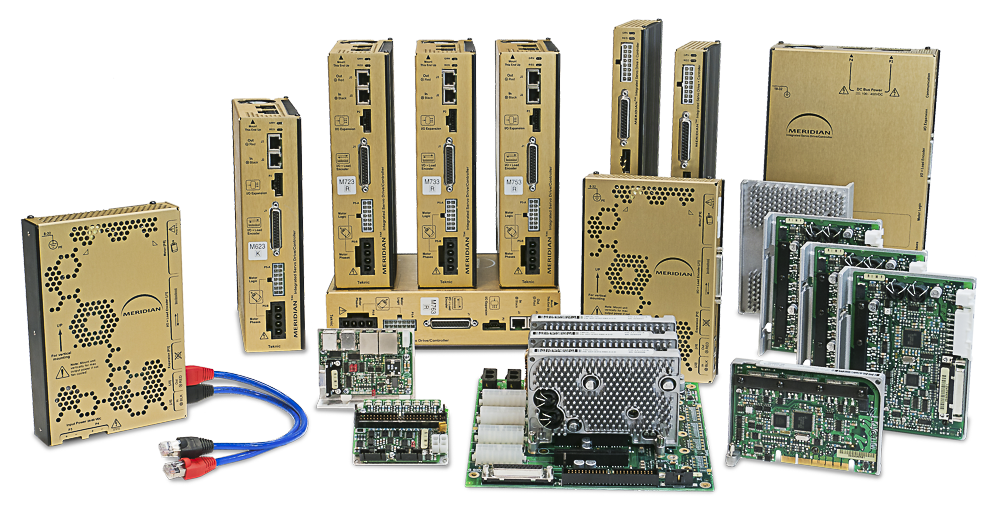

Meridian

Integrated Controllers

Meridian is the combination of a high-performance, all-digital brushless motor drive, a powerful motion controller, and flexible, digital I/O, all in one space-saving package. At the price of a typical stand-alone brushless motor drive, Meridian is like getting a powerful motion controller for free with every drive.

Compatibility	Runs brushed and brushless servo motors, steppers, linear motors, voice coils, and more
Software Tools	Advanced tools for all phases of the development cycle
Diagnostics	Extensive diagnostic data and troubleshooting tools
Safety	Protected from ESD, short-circuits, and other overloads

Starting Price (qty. 100-199) $289	3-year warranty	90-day returns
Starting Price (qty. 100-199) $289	OEM only	USA built

Learn More

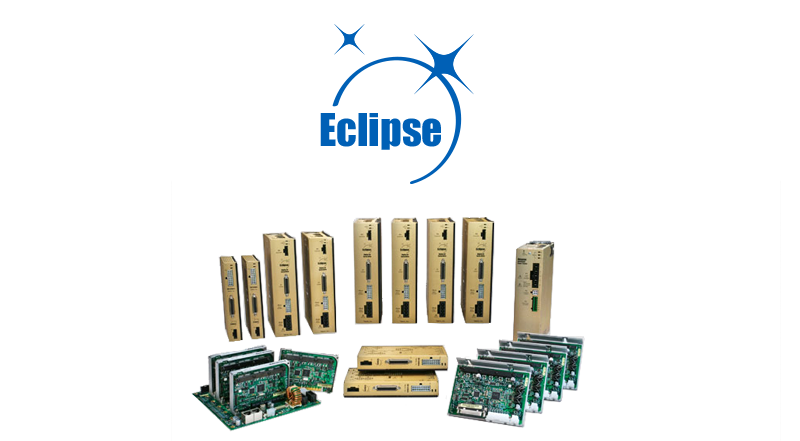

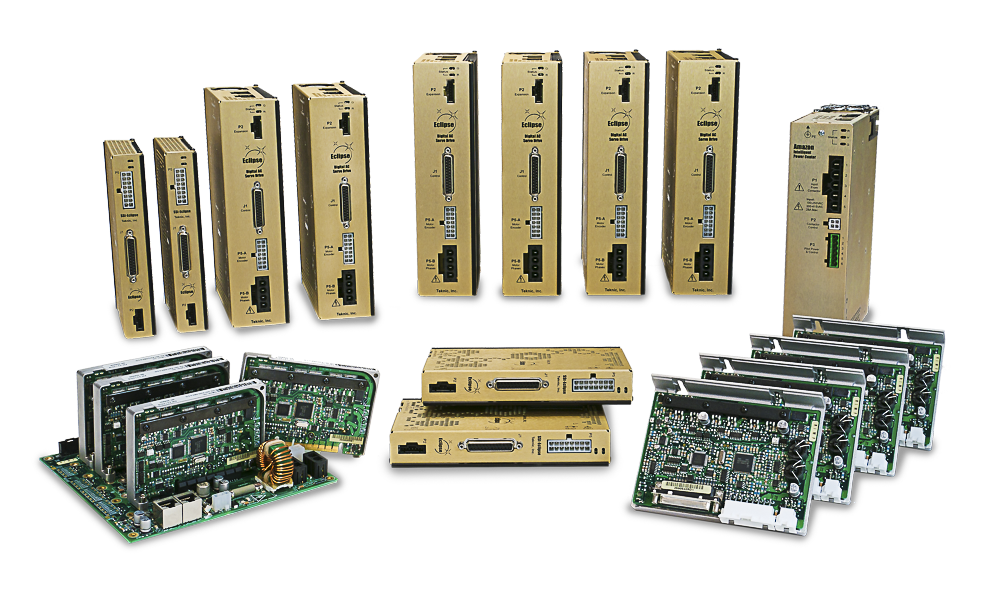

Eclipse

Digital Servo Drives

Eclipse is Teknic's newest generation of high-performance, all-digital brushless (and brush) servo drives for OEMs. Eclipse offers higher performance, more selection, and lower cost than ever before. You can get an Eclipse drive the size of a deck of cards, powerful enough to drive 2- and 3-inch servo motors with precision.

Compact Design	Innovative thermal dissipation technology delivers high peak power per cubic inch
Software Tools	Eliminate overshoot and improve machine performance with Teknic's proprietary servo algorithms
Compatibility	Pair with a wide array of motion controllers, indexers, and motor types
Safety	Protected from ESD, short-circuits, and other overloads

Starting Price (qty. 100-199) $315	3-year warranty	90-day returns
Starting Price (qty. 100-199) $315	OEM only	USA built

Learn More

High-Performance Products and Support

Learn more about Teknic

Find out more about Teknic's unmatched customer support, motion control innovations, and dedication to building high-performance products in the USA.

About Teknic

Speak with an engineer

To speak directly with one of Teknic's experienced factory-direct engineers, fill out the brief contact form linked below and we will contact you soon.

Contact Teknic
